STB-25CNC-3A-1S CNC Pipe Bending Machine

We are devoted to good quality products and people-oriented service, which wins good comments from domestic and overseas markets.

STB-25CNC-4A-2S is 4-axis servo mandrel bender with 2-stack tooling, which can be equipped with rolling tool of push bending. The machine has very high configuration with different functions for different pipe bending requirements. View the STM website or contact STM to acquire more information about the machine.

  • Description
  • Parameters
  • Application
  • Video
1. Bend-arm (C-axis) by AC servomotor.
2. Clamp die by hydraulic; pressure die by hydraulic.
3. Carriage (Y-axis) by AC servomotor.
4. With rear booster driven by AC servomotor (optional).

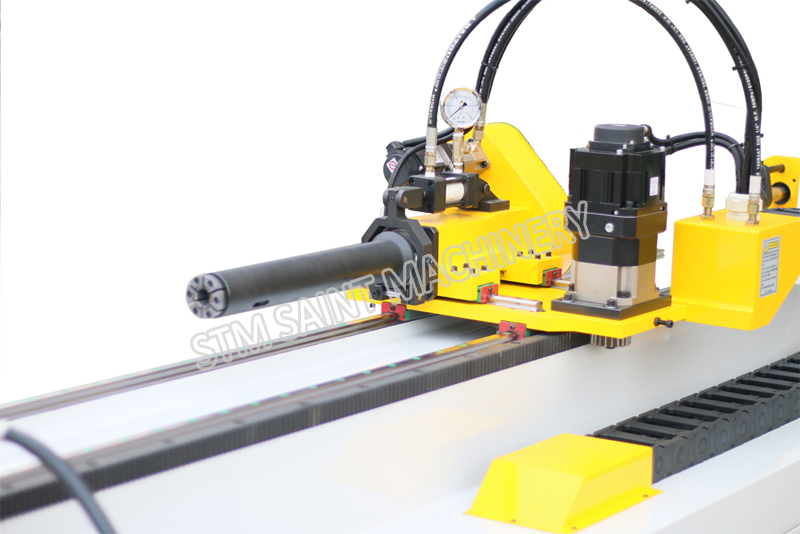

5. Collets (B-axis): rotation by AC servomotor, grip by hydraulic.
6. Optional: with roll bending function (PUSH BENDING), can make big radius by rolling.
7. Automatic moving parts lubrication.
8. Standing pedestal, serves emergency stop and remote control.
9. Optional: Industrial PC (windows system) assorted with touch screen display, capable of 3D bending simulation, 3D preview, remote control (TeamViewer)
10. Optional: auto loading and unloading system.
